DESCRIPTION

Overview

Basic Info.

Model NO.	TZ-V850
Numerical Control	CNC/MNC
Processing Precision	0.01~0.02(mm)
Performance Classification	High-End CNC Machine Tools
Certification	CE
Condition	New
Screw Bearing	P4NSK/ Japan
Ball Screw	Yintai or Shangyin/ Taiwan (C3)
a.T.C Capacity	Taiz or Deda/ Taiwan
Rail	Yintai or Shangyin/ Taiwan (P)
Spindle and Three-Axis Servo Motor	Mitsubishi/ Japan
Spindle	Dejiu Taiz/ Taiwan
CNC System	M80b Mitsubishi/ Japan
Transport Package	Plywood Case
Specification	2500*2250*2650
Trademark	TAIZ
Origin	China
HS Code	8457101000
Production Capacity	2000 Sets Per Month

Product Description

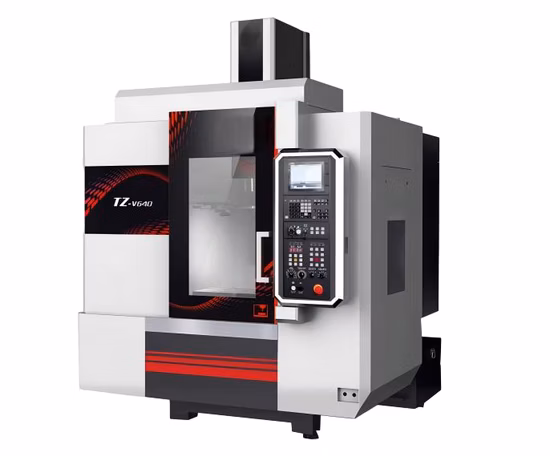

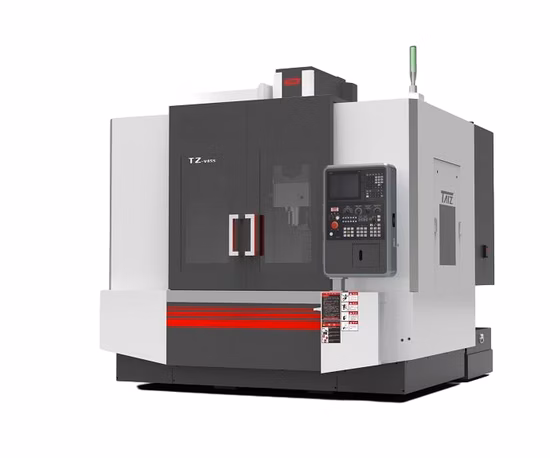

TZ-V850 High Quality and High Efficiency Chinese CNC Machining Center Grinding Machine
Product DescriptionLine rail vertical machining center is a new generation of CNC machine tools based on advanced design concepts such as ergonomics, precision manufacturing technology and automation technology, through repeated simulation calculation of engineering mechanics and prototype identification and trial production. This kind of machine tool is widely used in medical, UAV, new energy auto parts, precision fixture and automation equipment parts and other industries, mass production of precision parts.

Product Parameters

Model		TZ-V850
Worktable size L*W	(mm)	1000x500
Work table Max. loading	kg	400
T-slots size (N×W×D)	mm	5x18x90
X/Y/Z axis travel	mm	800/500/500
X/Y/Z axis feed speed	m/min	48/48/48
X/Y/Z axis motor	kw	2/2/3 kw
X/Y/Z axis roller Guide	mm	35/35/35
Spindle taper		BT40
Max. spindle speed	rpm	12000
Spindle motor power	kw	7.5/11
Distance from spindle nose to workbench	mm	120-620
A.T.C capacity	pcs	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300
Machine weight	kg	5000
Machine size (L*W*H)	mm	2500*2250*2650

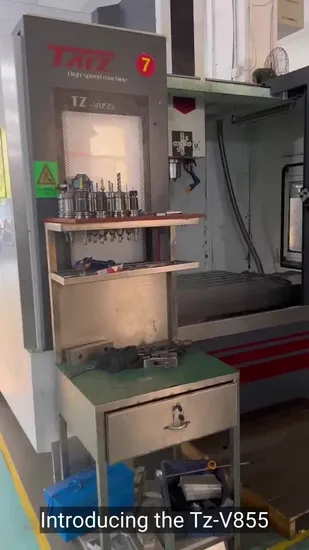

Detailed Photos1. Classic TZ-V850 vertical extra bed.
2. The bed and its main components are made of high-quality Yunnan cast iron with high specifications and advanced resin sand casting process.
3. The key structural parts of the machine tool are processed by large imported high-precision CNC equipment such as pentahedral machining center and gantry guideway grinding.
4. Using imported high-precision spindle bearings, the main transmission system adopts Japan Mitsubishi servo motor, which is directly connected to the spindle through the coupling to ensure the rigid tapping and high speed and low noise of the spindle.
5. The system adopts ball linear guide rails.7. The three-axis ball screw is pre-stretched to improve the stiffness of the screw.
8. Ball screw bearings are imported special screw bearings.
9. Ball screw and AC servo motor shaft adopt imported coupling for direct transmission without gap to ensure accurate positioning of mechanical movement.10. Configure automatic lubrication system to lubricate guide rail and ball screw regularly and quantitatively.11. The spindle loose cutter mechanism is driven by well-known brand gas booster cylinder, reliable performance, safety and energy saving. Application

Anoher Advantages

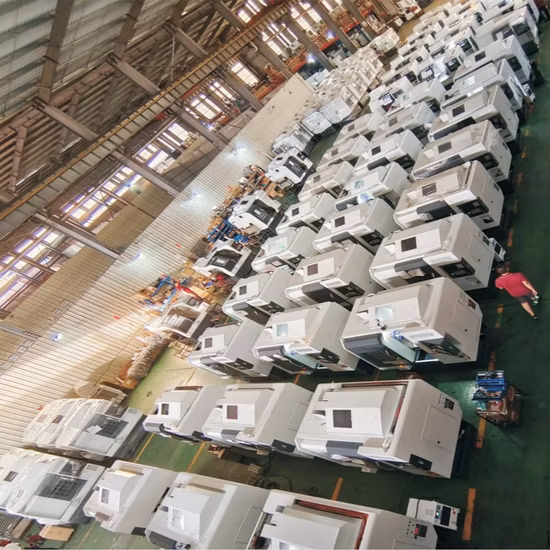

Excellent processing conditions and good production environment
Imported horizontal machining center, vertical machining center, CNC boring machine (rotating table) and gantry guideway grinding machine, effectively ensure the accuracy of the workpiece, greatly improve the assembly accuracy, and the durability of the accuracy.

Advanced detection methods
Positioning accuracy test and best correction with laser, using strict German VDI3411 inspection specification (5 times each)

Rigorous machining testing
Each machine tool must go through a strict processing side test before leaving the factory to ensure that it can accept the test of actual processing and meet the corresponding processing accuracy requirements. Company Profile

Guangdong Taizheng Intelligent Equipment Co., Ltd. was established in June 2010,is a set of intelligent equipment research anddevelopment, production, sales and service in one of the national high and new technology enterprise, the product has the high speeddrilling iron machining center, vertical machining centers, horizontal machining center, gantry machining center, pentahedron mach-ining centers and other series of precision machining equipment. After years of development, it has become one of the largest machinetool manufacturers in Taiwan and Mainland China.
Company since its inception,adhere to the "diligence, quality, innovation, win-win"concept of value, constantly explore innovative, whole image into the pursuit of the top performance of the machine, always held firm to provide clients with reasonable prices,excellent quality of machinery, each machine tool design and manufacture of machine with high precision, high performance, nighefficiency, long life as a standard, It has shaped the brand of TaiZheng machine tool and become the symbol of high quality workingmachine.
